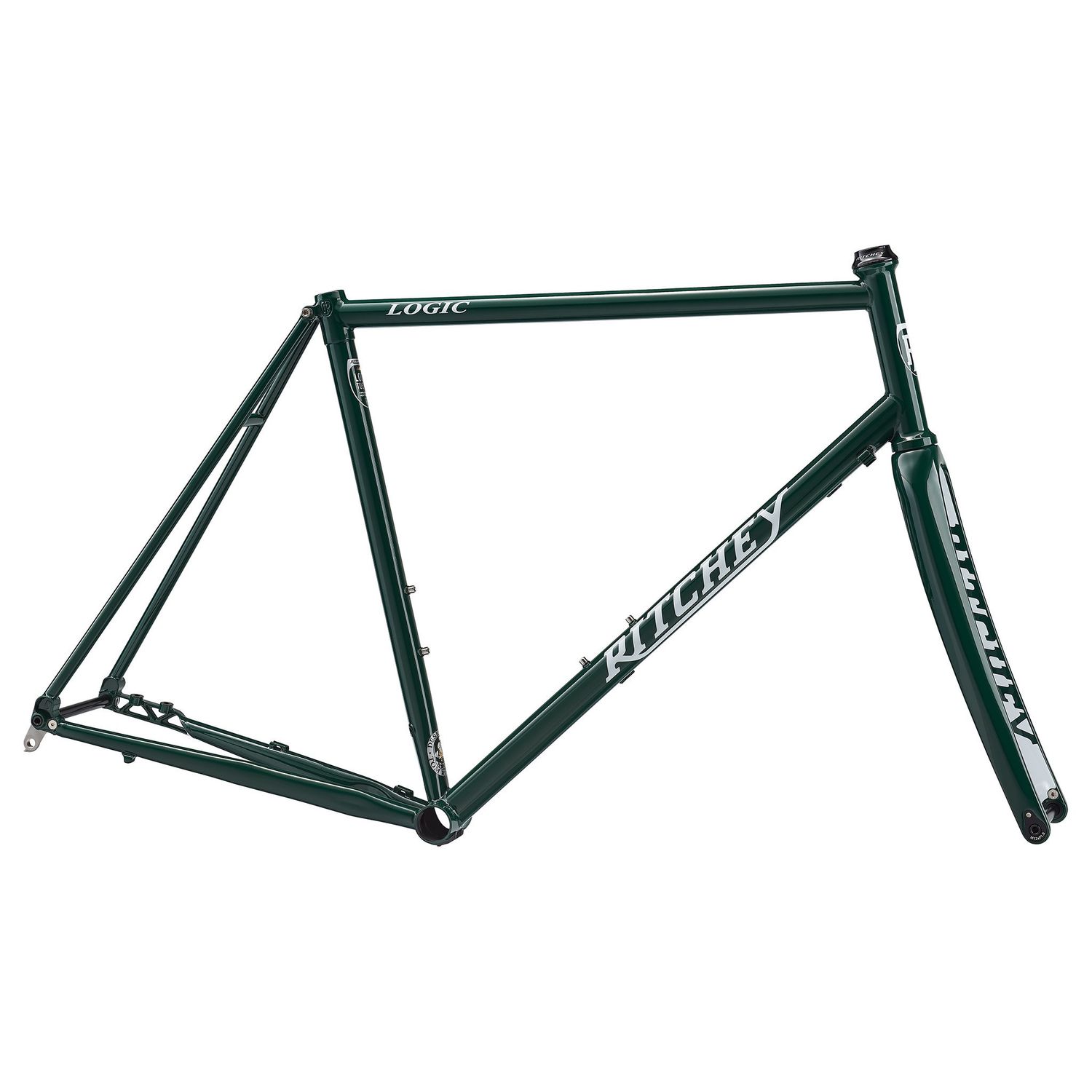

Frameset Ritchey Road Logic Disc 59 cm Green
SKU 97352897018
$1 799.00
Sold out
Frameset Ritchey Road Logic Disc 59 cm Green
Sold out
Product Details
UPC: 796941975018
Brand: Ritchey
- Heat-treated, triple-butted Ritchey Logic tube set features short-butted sections optimized to save weight and improve ride quality
- Now compatibility with Shimano’s newest Di2 semi-wireless groupsets
- Painted to match Ritchey full carbon fork
- Forged and machined straight head tube
- Standard road spacing on frame and fork
- Fits tires up to 30c
- Ritchey WCS Carbon Road Fork included
- 12x142 thru axle (included with frame)
- Logic Zero WCS drop in 1-1/8” headset included
| size: | 59cm |
| top tube (effective): | 590mm |
| chainstay: | 415mm |
| head angle: | 74 deg |
| seat angle: | 73.5 deg |
| headset: | IS42/28.6|IS42/30 |
| bottom bracket: | 68mm |
| seatpost: | 27.2mm |
| front derail: | 28.6mm |
| BB drop: | 70mm |
| stand over: | 836mm |
| dropout: | 12x142mm TA |
| color: |
green |
